Electronics
Properties
| Base | Polysiloxane | |
| Consistency | Non-Slump Paste | |
| Curing System | BQP | Moisture Curing |
| Cross-Linking | Oxime | |
| Appearance/Colour | BQP | Clear, White, Black, Grey, Cream |
| Viscosity Flow | BQP | Non-Sag |
| Specific Gravity / Density | DIN 53479 | 0.98 to 1.04 + 0.02g/mL |
| SOT Skin Over Time 23°C / 50% R. H. | BQP | 7 – 15 Minutes |
| Tack-Free 23°C / 50% R. H. | ASTM 679 | 12 – 18 Minutes |
| Tooling Time | BQP | 15 Minutes |
| Cure Depth Rate (mm/day) | BQP | >2mm |
| Shore A Hardness | ASTM D 2240 | 20 – 30 |
| Temperature Resistance | -60°C to 180°C (Brief Exposure up to 200°C) | |
| Application Temperature | 5°C to 30°C | |
| Elongation at Break (%) | ASTM D412 | 500 – 600 |
| Tensile Strength (N/mm2) | ASTM D412 | >1.00 |
| Full Cure | 7 Days | |
| Dielectric Strength | ASTM D 149 | 19.5 kV/mm |
| Breakdown Voltage | ASTM D 149 | 43.1 kV |
| Dielectric Constant at 100Hz/100kHz | ASTM D 150 | 2.4 |
| Dissipation Factor at 100Hz | ASTM D 150 | 0.093 |
| Dissipation Factor at | ASTM D 150 | 0.0005 |
| 100kHz | ||
| Volume Resistivity | ASTM D 150 | 8.2 x 1014 ohm.cm |

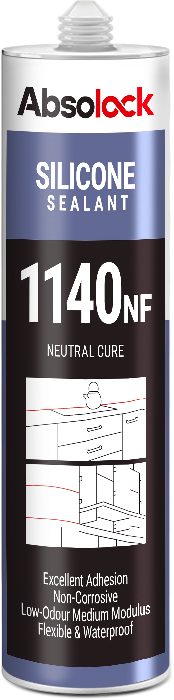

1140 NF SILICONE SEALANT is a one-component, low-odour, neutral-cure, non-corrosive silicone adhesive/sealant, specially formulated for general sealing applications. It offers reliable performance and is safe for use on a variety of substrates.
Low VOC
No Cracking
Remains Elastic Forever
Super Leakage Control
Anti-Fungal
Water & Weatherproof
Ideal for Interiors
Ideal for Exteriors
Packaging Type
Plastic Cartridge, Alu. Sausage
Colours Available
Clear, White, Black, Grey, Cream
Volume
280 ml, 300 ml, 600 ml
Packaging
280 ml x 24 Nos., 300 ml x 24 Nos., 600 ml x 20 Nos.
Properties
| Base | Polysiloxane | |
| Consistency | Non-Slump Paste | |
| Curing System | BQP | Moisture Curing RTV |
| Cross-Linking | Oxime | |
| Appearance / Colour | BQP | Clear |
| Viscosity Flow | BQP | Non-Sag |
| Specific Gravity / Density | DIN 53479 | 1.02 to 1.06 + 0.02 g / mL |
| Application | Bonding & Sealing | |
| SOT Skin Over Time 23°C / 50% R. H. | BQP | 10 Minutes |
| Tack-Free 23°C / 50% R. H. | ASTM 679 | 20 – 25 Minutes |
| Tooling Time | BQP | 15 – 20 Minutes |
| Cure Depth Rate (mm/day) | BQP | 2.5 mm – 3 mm |
| Shore A Hardness | ASTM D 2240 | 20 – 30 |
| Temperature Resistance | -50°C to 230°C (Brief Exposure up to 250°C) | |
| Application Temperature | 5°C to 40°C | |
| Elongation at Break (%) | ASTM D412 | >300 |
| Tensile Strength (N/mm2) | ASTM D412 | 0.9 – 1.50 |
| Dielectric Strength (kV/mm) | ASTM D149 | > 16 |
| Full Cure | 7 Days |

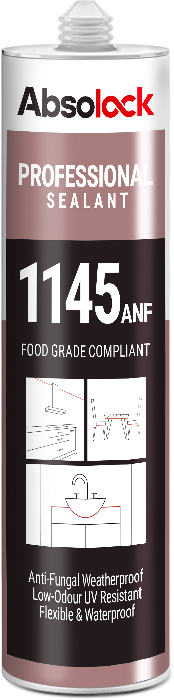

1145 ANF PROFESSIONAL SEALANT is a one-part, neutral-cure, antifungal silicone sealant that cures at room temperature upon exposure to moisture, forming a flexible, rubbery seal. Ideal for construction and glazing applications, it is easy to apply and offers excellent adhesion to various non-porous substrates. It resists ozone, UV radiation, and extreme temperatures.
Low VOC
No Cracking
Remains Elastic Forever
Super Leakage Control
Anti-Fungal
Water & Weatherproof
Ideal for Interiors
Ideal for Exteriors
Packaging Type
Alu. Tube, Plastic Cartridge
Colours Available
Clear
Volume
10 ml, 15 ml, 25 ml, 50 ml, 85 ml, 100 ml, 125 ml, 300 ml, 300 g
Packaging
Volume x 200 Nos., Volume x 24 Nos.
